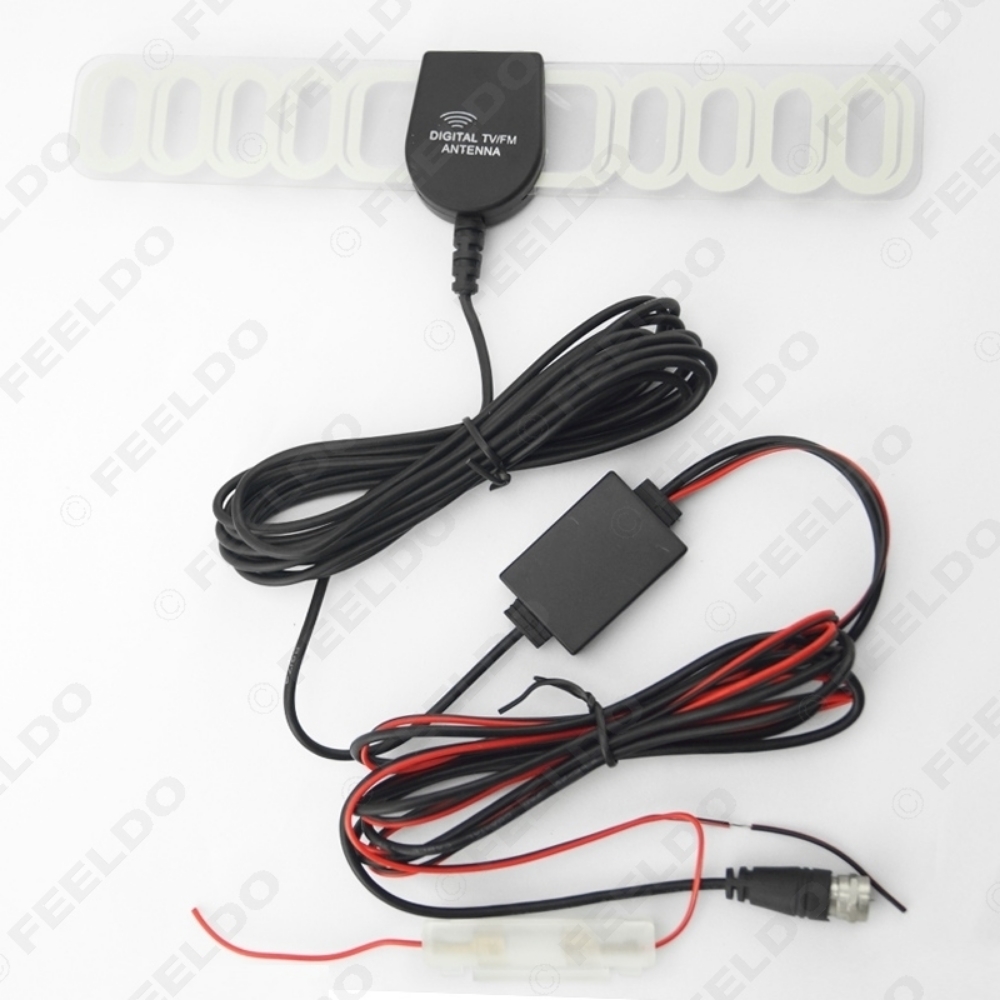

Car F Connector Active DVB-T TV Antenna Aerial With Built-in Amplifier

Active antenna with built-in amplifier for digital TV
Connector type:F(Male)
Operating Voltagerange:DC12±0.5V
Operating Current:10±3mA
Frequency Range:470-860MHz
V.S.W.R:<=1.5
Gain:20±1dB
Input Impedance:50Ω
Polarization Type: vertical
Antenna Length:220mm
Line Length:3000mm
Operating Temperature:-20c-85c
Installation method:Stick-on

HOW TO USE
(1)Detach tape and attach antenna unit wherever
(2)Coaxial cable connect to receiver antenna jack and turn on Antenna+5V power supply
(3)Put the coaxial cable away from high temperature parts and as possible as shield the cable to prevent directly sunshine
