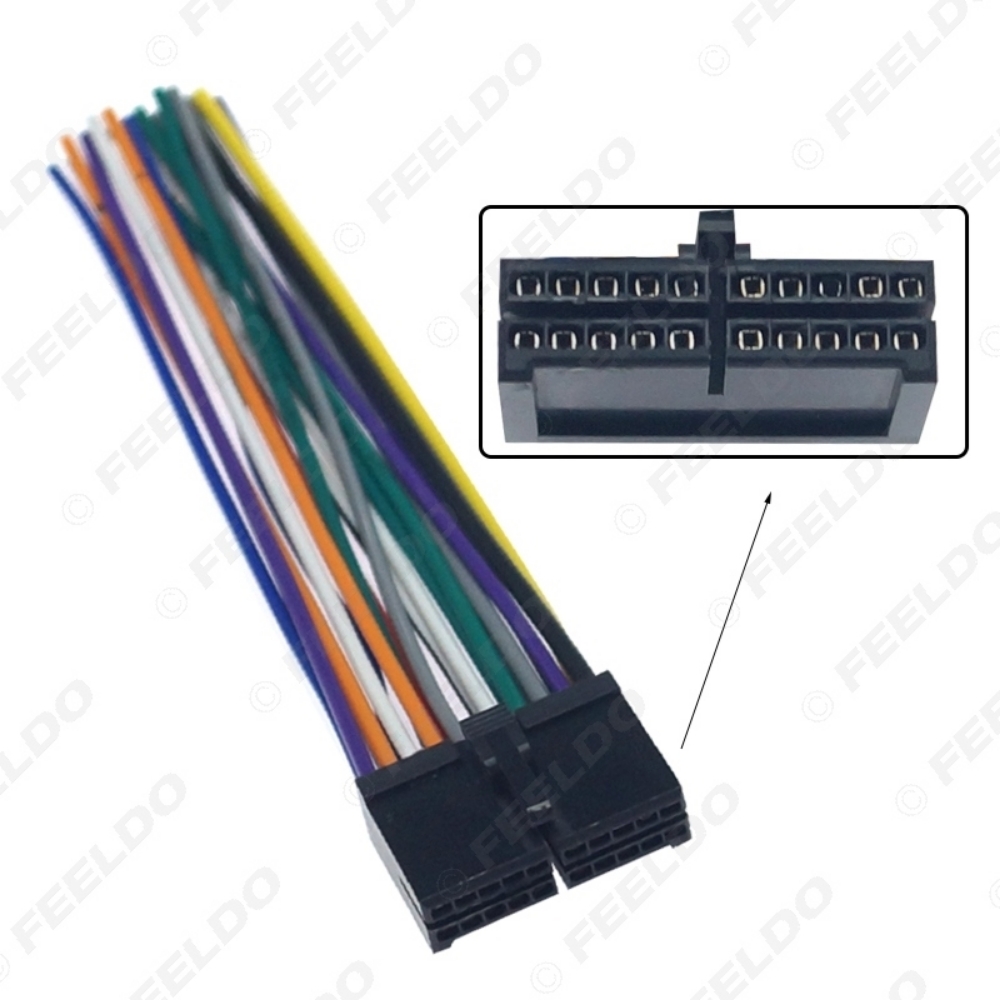

Auto Universal Head Unit CD/DVD Stereo Audio Radio 20Pin Wiring Harness Cable Plug for Aftermarket

SKU: #6122
Old price: 2.87 (GBP)
1.31 (GBP)
PRICE BREAKS - The more you buy, the more you save
Quantity1+15+29+43+58+
Price1.31 (GBP)1.25 (GBP)1.20 (GBP)1.18 (GBP)0.59 (GBP)
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features:
Many aftermarket car head unit use this wiring harness plug cable,but each pin's electrical
defined feature is different,you can buy this harness and adjust each pin's possition by yourself
according to your car head unit old original wire diagram.

20Pins electrical features defined as follow:
#1 GND-
#2 BAT+
#3 Rear Right Speaker-
#4 Rear Right Speaker+
#5 Front Right Speaker-
#6 Front Right Speaker+
#7 Rear Left Speaker+
#8 Rear Left Speaker-
#9 Front Left Speaker+
#10 Front Left Speaker-
#11 Brake
#12 Acc.+
#13 Amp. Control
#14 Backup(Reverse)
#15 SWC+(Steering Wheel Control)
#16 Ant.Control
#17 SWC-
#18 N/A
#19 illum. Light Control
#20 N/A
