General Information |
Compatibility |

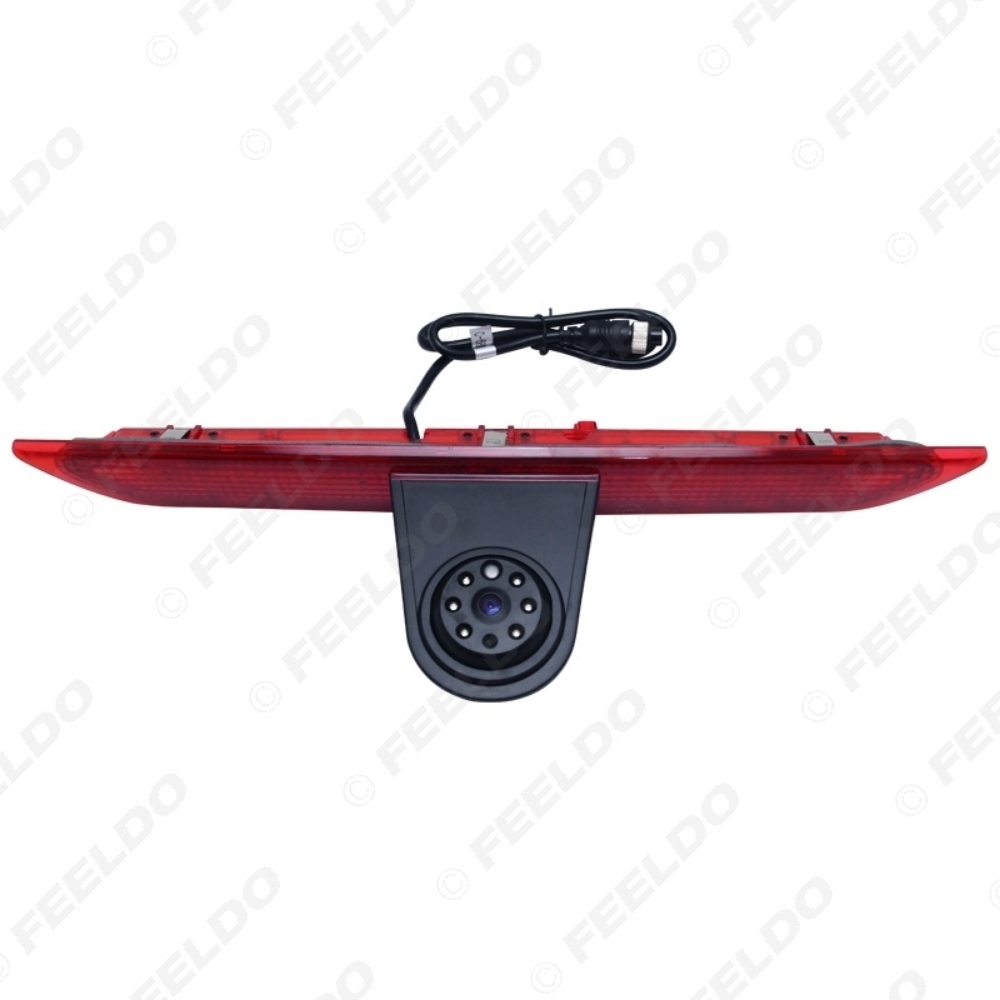

For FORD Transit L MODEL 2014-2015 |
Specifications |
Image Sensor |
Real 1/3 Sony CCD |
Lens materials |
100% Glass |
Effective pixels |
752×582 pixels |
Horizontal resolutions |
600 TV lines |
Field View Angle |
170deg (Diagonal),130deg (H),125deg(V) |
Sensing Area |
3.8mm*2.9mm |
Shutter Speed |
1-1/12000 |
Gamma No. |
0.45 |
Night Vision |
Support (IR) |
Lens with LED Light |
No |
Parking Guide Line |
NO (CCD sensor don't support) |
Guide Line Switch |
NO |
ImageType |
Mirror image |
Mirror/Original Switch |
NO |
TV System |
NTSC (PAL Optional,Pls leave the message) |
Video Output |
CVBS RCA connector(1.0VP-P,70OHM) |
Minimum illumination |
0.01 Lux/F=1.2(0 Lux with IR on) |
Power supply |
DC12V |
Power consumption |
130mA |
Operating temperature |
-20C~75C,RH 95% MAX |
Storage temperature |
-40C~80C,RH 95% MAX |
Waterproof rate |
IP67/IP68 |
Video Cable |
10 Meters |
